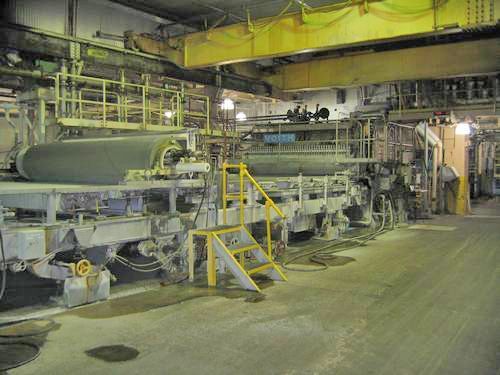

TAMPELLA High Speed SC A Grade Paper
Machine: (1988, rebuilt 1995), Size 208”
Wide, 184” Trim, 110” Maximum Jumbo Reel
Diameter, 4,600 FPM, 4,000 FPM Designed
Operating Speed, 4,200 Current Operating
Speed, 380 FSTPD Based On 35.5 Lbs. Sheet
Current Production, 454 Short Tons Per Day
Capacity, With Basis Weight 33.5, Tampella
Stainless Steel Pressurized Head Box, 276”
Wide, 21,6000 GPM Max. Capacity, Tampella
Cantilever Type Fourdrinier, Felt Guides,
Felt Stretchers, Felt Cleaners, Doctor
Blades, (38) Main Paper Dryers, 72” X 199”
Face, (82) Felt Dryer Rolls, 16” x 216”
Face, Tampella Dryer Hood, (15) Paper Roll
Reels, Avatron Speed Controller, Measurex
System (2003), And Related Support Equipment
Etc.
WOOD ROOM IN-FEED SYSTEM (2001): 100”
Log Length, 30” Maximum Log Diameter, 3”
Minimum Log Diameter, 49” Log Length To
Grinders, 75M3/Hr Designed Capacity In-Feed
To Debarker, CAE Model Fuji King KD6/90DT
Debarker, Sorter Camera System, Andritz
Debarker Out-Feed Conveyor, 4’ x 20’,
Slasher Deck, (2) 62” Saws, & Related
Support Equipment
PAPER ROLL WRAP LINE SYSTEM
VALMET HOT MELT ROLL WRAP LINE:
(1997), 146” Max Roll Width, 60” Max Roll
Dia., 18,214 Lbs Max Roll Weight, 16” Min.
Roll Width, 30” Min. Roll Dia., Production
Dependent On Roll Length, 122” To 146” Roll
Length 29-30 Rolls Per Hour, 22” To 42” Roll
Length 58-60 Rolls Per Hour, Allen Bradley
Computer Controls, (2) Paper Unwind Stands,
Label Printer, Mettler Toledo Digital Scale
& Related Support System
REWINDER
VALMET WINBELT-SR REWINDER, (1997),
C/W (5) Slitting Heads, 5,000 FPM, 146” Max
Unwind Dia., 146” Max. Trim, 60” Max. Unwind
& Windup Dia. & Related Support Equipment
(#8)
WINDERS
VALMET WINBELT-M WINDER, (1997),
7,500 FPM, (10) Slitting Heads, 186” Max.
Unwind Width, 113” Max. Unwind Dia., 184”
Max. Trim, 60” Max. Windup Dia. & Related
Support Equipment (#7)
VALMET KL500 WINDER, (1988), 184”
Wide & Trim, 8,000 FPM Max. Drive Speed,
6,500 FPM Normal Speed, 100” Max. Unwind
Dia., 7” Min. Windup Roll Width, 60” Max.
Windup Dia., 24” Min. Windup Dia., 30”
Diameter Roll Capacity, Edge Guide, Beloit
Articulating Rider Roll, Slitter Bar, Trim,
Roll Lowerating Platform, 200 HP, Valmet
Unwinding Back Stand, 195” Wide, DC Drive
250/300 HP, Control Panel & Related Support
Equipment (#6)
WARTSILA KL500 WINDER, (1985), 7,000
FPM Max. Speed, 6,500 FPM Normal Speed, (9)
Slitters, 100” Max. Unwind Dia., 188” Max.
Unwind Width, 188” Max. Trim, 7.5” Min.
Windup Roll Width, 60” Max. Windup Dia., 24”
Min. Windup Dia., (2) Drums, 30” Diameter,
Beloit K1500 Actuator Rider Rolls, Edge
Guide, Wonderware Software, Trom Blower
System, Roll Lowerating Platform, 819 RPM,
Wartsila Unwinding Back
SUPER CALENDARS
(3 pcs.) VALMET 10/193” OPTI-LOADS SUPER
CALENDARS, (1988), 193” Wide, 3,500 FPM,
(10) Rolls High Capacity, 100” Unwind &
Windup Max. Dia., (3) Chilled Iron
Intermediate Rolls, 20” Diameter, (5)
Intermediate Paper Rolls, 25” Diameter, Top
Queen Rolls, 26” Diameter, King Roll, 30”
Diameter, (8) Paper Fly Tension Rolls,
Unwinding Stand, Doctor Blades, DC Stack
Drive Motor 800 HP, Roll Storage Back Stand
& Related Support Equipment
(2 pcs.) WARTSILA 10/193” SUPER CALENDERS,
(1985), 2,850 FPM, 193” Wide, (10) Rolls
High Capacity, 100” Max. Unwind Dia., 100”
Max. Windup Dia., Chilled Iron Crown Top
Roll, 25.5” Diameter, (5) Intermediate Paper
Rolls, 5.5” Diameter, (3) Intermediate
Chilled Iron Steam Pressure Rolls, 20”
Diameter, King Roll, 30” Diameter, Tension
Rolls, Glycol, Temperature Control System,
ASEA DC Drive Motor, 800/1200, Unwinding
Stand, Wind-Up Stand, Controller, & Assorted
Support Equipment
TAMPELLA ATMOSPHERIC GRINDERS
(2 PCS.) TAMPELLA DOUBLE STONE HYD. LOG
MAGAZINES (1989), Size 67” x 54” Face,
160 BDSTPD Capacity, Electric Load Governors
P/W GE 14,000 HP Electric Motor, 300 RPM &
Related Support Equipment
TAMPELLA SINGLE STONE HYD. MAGAZINE
(2001), Size 67” x 54” Face, Electric Load
Governors P/W GE 8,000 HP Electric Motor,
300 RPM & Related Support Equipment
WATEROUS ATMOSPHERIC GRINDER
KOEHRING WATEROUS 48”, (2) Stones,
Size 48”, 67” x 48” Face, 160 BDSTPD
Capacity P/W GE 8,000 HP Electric Motors,
300 RPM & Related Support Equipment
ROLL BALANCER
ENTEK , Digital Read-Out Controller,
48.8 Kva, 3/60/575
FURNACE SCOOPER
MINE MASTER FURNACE CLEAN-OUT SCOOPER,
18’ Long Hydraulic Powered Telescoping Boom,
Rubber Track Mounted P/W Kubota Three
Cylinder Diesel Powered Engine, 488 Hours
HAMMER HOGS & SHREDDER
GRIZZLY FLYING HAMMER (1999) 48” x
48” Opening P/W Toshiba 450 HP Electric
Motor, 1185 RPM
DRESSER GROUND WOOD TAILINGS, Size
55” X 45” Face, Steel Feed Hopper Above,
Steel Grid Platform, Drive Motor 300/500,
2300/4160 Volts & Related Support Equipment
SCANNERS
(6 PCS.) HONEYWELL 4000 DAVINCI PLATFORM
PRECISION MEASURING SCANNERS (2004)
PAPER TESTING COMPUTERS
(4 pcs.) TECHNIGYNE PROFILE PLUS PAPER
TESTING COMPUTERS, Caliper, Gloss,
Roughness, Roughness Positive Units
CORE CUTTING EQUIPMENT
MONTAGUE 4” Diameter Core Stretcher
Machine, Berlin 3/4” x 3/4” Core Knotcher,
Berlin 4” Diameter Hydraulic Core and Metal
Fastener Machine, (2) Montague 4” Diameter
Core and Metal Squeezer, Berlin 17/8” Core
Knotcher, Sonoco 98-32 Core Saw, Size 80”
Diameter C/W Provac Dust Collector, Buffalo
36” Diameter Exhauster Blower, Upton S1010
Core Tube Cutter, 3” Diameter Capacity
