345 MW Power Plant

[PLEASE CONTACT US FOR FURTHER INFORMATION]

• Unit 1 is a 144 megawatt (MW) coal-fired unit

• Unit 2 is a 201 megawatt (MW) unit that operates on either natural gas or No. 6 fuel oil

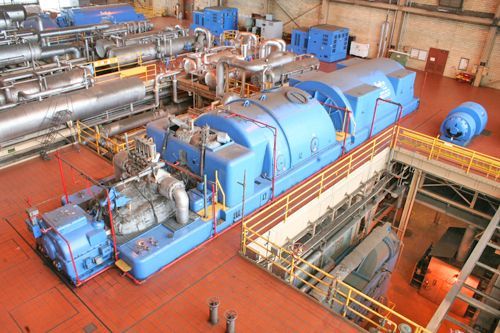

TURBINE GENERATORS

• GENERAL ELECTRIC COMPANY UNIT # 1 STEAM TURBINE GENERATOR UNIT

  • 3600 RPM

  • Rated Performance 150,000 KW @ 1 In. Mercury Absolute Backpressure

  • 85% Power Factor

  • Turbine: 2-Cylinder; Tandem Compound; Reheat Type Condensing Turbine; Triple Flow Low Pressure Exhaust End; Rating 177411 KW; 3600 RPM; 22-Stages; Steam Conditions: 1800 PSIG; Temperature 1000° F; Exhaust Pressure 2.0 HG ABS; Throttle Steam; 415 PSIG Exhaust To Reheater; Reheat Temperature 1000° F

  • Generator: Generator No. 6943811; Totally Enclosed; Hydrogen Cooled; Single Winding; Generation - 20 kv; 3-Phase; 60-Cycle

• WESTINGHOUSE ELECTRIC CORPORATION UNIT # 2 STEAM TURBINE GENERATOR UNIT

  • 3600 RPM

  • Rated Performance 200,000 KW @ 1 In. Mercury Absolute Backpressure

  • 85% Power Factor

  • Steam Turbine: 2-Cylinder; Tandem Compound; Reheat Type Condensing Turbine; Triple Flow Low Pressure Exhaust End; ID Plate Ratings; Rated KW-200000; Max. KW-200000; Initial Press.-1800 PSIG; Initial Temp.-1000° F; Reheat Temp.-1000° F; Exhaust Pressure-1.0" HG ABS; RPM-3600; Throttle Steam; 415 PSIG Exhaust To Reheater

  • AC Generator: S/N IS44P130; ID Plate Ratings; H2 Pressure - 30/45 PSIG; KW - 200000/230000; KVA - 235294/270588; Amperes - 6792/7811; % PF - 85; Field Amperes - 2190/2440

EXCITERS

• General Electric Unit #1

  • Direct Current Generator - Type MPO

  • 375 Volts Full Load

  • 500 KW

  • 900 RPM

  • 1333 Amp

  • Shunt Wound; Induction Motor - Model 5K6356AR1, S/N 6942860, 750-HP, 4160 Volts, 890 RPM, 6356S Frame

• Westinghouse Unit #2 Exciter

  • DC Generator - 500 Volts

  • 1250 KW

  • 2500 Amps

  • 720 RPM

  • Shunt Wound, S/N 1S-44P132, Induction Motor - 1750-HP, 4000 Volts, 715 RPM, 10-62 1/2-25 Frame, Type CSF, S/N 1S-44P133

• Westinghouse Unit #12 Exciter

  • DC Generator - 500 Volts

  • 1250 KW

  • 2500 Amps

  • 720 RPM

  • Shunt Wound, S/N 2S-44P132, Induction Motor - 1750-HP, 4000 Volts, 715 RPM, 10-62 1/2-25 Frame, Type CSF, S/N 2S-44P133

CONDENSERS

• Unit #1 Surface Condenser

  • 72,000 Sq. Ft.

  • Horizontal, Single Pass, Vertically Divided, Deaerating Type

  • Revere Copper & Brass Condenser Tubes

  • Ingersoll Rand Water Box

• Unit #2 Surface Condenser

  • 92,000 Sq. Ft.

  • Horizontal, Single Pass, Vertically Divided, Deaerating Type

  • American Brass Condenser Tubes

  • Ingersoll Rand Water Box

FEEDWATER SYSTEM

• Worthington Unit #1A Condensate Pump

  • Vertical Type

  • 1,200,000 GPM

  • GE 500-HP Motor Drive, Model 5K6346DB1, 4000 Volt, 1185 RPM, 6346V Frame

• Worthington Unit #1B Condensate Pump

  • Vertical Type

  • 1,200,000 GPM

  • GE 500-HP Motor Drive, Model 5K6346DB1, 4000 Volt, 1185 RPM, 6346V Frame

• Worthington Unit #2A Condensate Pump

  • Vertical Type

  • Size 18-QEB-9

  • 800,000 GPM

  • GE 350-HP Motor Drive, Model 5K6344KD1, 4000 Volt, 1180 RPM, 6344V Frame

• Worthington Unit #2B Condensate Pump

  • Vertical Type

  • Size 18-QEB-9

  • 800,000 GPM

  • GE 350-HP Motor Drive, Model 5K6344KD1, 4000 Volt, 1180 RPM, 6344V Frame

• Worthington Unit #2C Condensate Pump

  • Vertical Type

  • Size 18-QEB-9, 800,000 GPM

  • GE 350-HP Motor Drive, Model 5K6344KD1, 4000 Volt, 1180 RPM, 6344V Frame

• Worthington Unit #1A Boiler Feed Pump

  • Centrifugal Type

  • Type 8-WSC-2-8 STAGE

  • GPM 1281

  • RPM 3575

  • Head Ft. 5135

  • Driver HP 2000

  • 575,000-Lbs./Hr, 2215 PSI Discharge Head

  • Positive Suction Head 225 PSI

  • Elliot Company Induction Motor, S/N 6S-8958, 2000-HP, 4000 Volts, 3575 RPM, 36-34 Frame

• Worthington Unit #1B Boiler Feed Pump

  • Centrifugal Type

  • Type 8-WSC-2-8 STAGE

  • GPM 1281

  • RPM 3575

  • Head Ft. 5135

  • Driver HP 2000, 575,000-Lbs./Hr

  • 2215 PSI Discharge Head

  • Positive Suction Head 225 PSI

  • American Rotor Corporation Motor, S/N 03-10190, (11/03), 2000-HP, 4160 Volts, 3580 RPM, 36-34 Frame

• Worthington Unit #12 (Common Spare) Boiler Feed Pump

  • Centrifugal Type

  • Type 8-WSC-2-8 STAGE

  • GPM 1281

  • RPM 3575

  • Head Ft. 5135

  • Driver HP 2000, 575,000-Lbs./Hr

  • 2215 PSI Discharge Head

  • Positive Suction Head 225 PSI

  • Elliot Company Induction Motor, S/N 5S-8958, 2000-HP, 4000 Volts, 3575 RPM, 36-34 Frame

• Worthington Unit #2A Boiler Feed Pump

  • Centrifugal Type

  • Type 8-WSC-2-8 STAGE

  • GPM 1281

  • RPM 3575

  • Head Ft. 5135

  • Driver HP 2000, 575,000-Lbs./Hr

  • 2215 PSI Discharge Head

  • Positive Suction Head 225 PSI

  • Elliot Company Induction Motor, S/N 3S-8958, 2000-HP, 4000 Volts, 3575 RPM, 36-34 Frame

• Worthington Unit #2B Boiler Feed Pump

  • Centrifugal Type

  • Type 8-WSC-2-8 STAGE

  • GPM 1281

  • RPM 3575

  • Head Ft. 5135

  • Driver HP 2000, 575,000-Lbs./Hr

  • 2215 PSI Discharge Head

  • Positive Suction Head 225 PSI

  • Elliot Company Induction Motor, S/N 2S-8958, 2000-HP, 4000 Volts, 3575 RPM, 36-34 Frame

• Worthington Unit #2C Boiler Feed Pump

  • Centrifugal Type

  • Type 8-WSC-2-8 STAGE

  • GPM 1281

  • RPM 3575

  • Head Ft. 5135

  • Driver HP 2000, 575,000-Lbs./Hr

  • 2215 PSI Discharge Head

  • Positive Suction Head 225 PSI

  • Elliot Company Induction Motor, S/N 1S-8958, 2000-HP, 4000 Volts, 3575 RPM, 36-34 Frame

.
