Cogeneration Plant

[PLEASE CONTACT US FOR FURTHER INFORMATION]

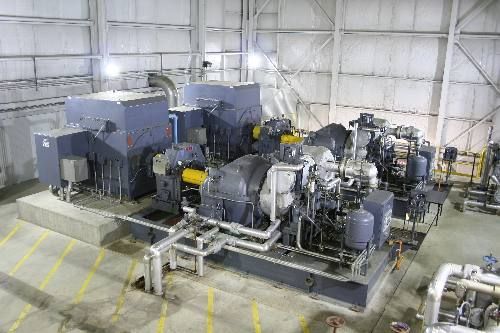

• Hyundai Ideal 9.3 mW 175 PSI Steam Turbine Generator System (2009)

  • Dresser Rand Large Condensing Turbine, Item No. MVR, Model / Size RD6MO-MV (6-Stage), Rated 9341 KW, 4518 Rated RPM, 4744 Max. Cont. RPM, 1st Critical - 2800 RPM (N) 2804 RPM (S), 175 PSIG - 515 F Inlet x 4" HgA Exhaust, 4-5/8" Valve Travel

  • Hyundai Ideal Brushless AC Generator, Frame 21520-41, Type SAB, 9341 KW, 11676 KVA, 12470 Volts, 1800 RPM, 541 Amps,
    3-Phase, 6-Wire, 60 Hertz, Pressure Lubricated Bearings, 15-20 PSI

  • Lufkin Gearbox, Model N2400C, Ratio 2.510:1, Input RPM 4518, Service Factor 1.71, Catalog Rating 21526 HP

  • Brushless Exciter, Frame BE-13-3, Type FRBA, KW Output 25, DC Volts 180, DC Amps 139

  • Permanent Magnet Alternator, Frame PM-13-3, KVA 24, KW 22

  • Air To Water Heat Exchanger, Water Flow Rate Thru Cooler 300 GPM, Max. Water Temperature Into Cooler 86 F, Max. Water Pressure 100 PSI, Water Temperature Out Of Cooler 92 F, Pressure Drop Thru Cooler 8 PSI

  • Graham 10" x 8' Inter / After Condenser, MAWP FV & 20 PSIG Shell / 75 PSIG Tubes, Test Pressure 26 PSIG Shell / 113 PSIG Tubes, Design Temp. 350-Deg. F Shell / 150-Deg. F Tubes

  • Graham Surface Condenser, 7322 Square Feet Surface Area, MAWP Shell - FV & 15 PSIG @ 250-Deg. F, MAWP Tubes - 75 PSIG @ 150-Deg. F, Test Pressure Shell 20 PSIG, Test Pressure Tubes 113 PSIG

  • Main Condensate Pumps, TECO-Westinghouse 20-HP, Goulds Model 3196 2x3-13, 12.375" Impellor Diameter, 300 GPM @ 140 TDH, 316SS Construction, #'s CP-8A & CP-8B

  • Lube-Power Inc. Lube Oil Skid

  • Turbine / Generator Instrument & Relay Cubicle Control Panel

  • Breaker Cubicle

• Hyundai Ideal 9.3 mW 175 PSI Steam Turbine Generator System (2009)

  • Dresser Rand Large Condensing Turbine, Item No. MVR, Model / Size RD6MO-MV (6-Stage), Rated 9341 KW, 4518 Rated RPM, 4744 Max. Cont. RPM, 1st Critical - 2800 RPM (N) 2804 RPM (S), 175 PSIG - 515 F Inlet x 4" HgA Exhaust, 4-5/8" Valve Travel

  • Hyundai Ideal Brushless AC Generator, Frame 21520-41, Type SAB, 9341 KW, 11676 KVA, 12470 Volts, 1800 RPM, 541 Amps, 3-Phase, 6-Wire, 60 Hertz, Pressure Lubricated Bearings, 15-20 PSI

  • Lufkin Gearbox, Model N2400C, Ratio 2.510:1, Input RPM 4518, Service Factor 1.71, Catalog Rating 21526 HP

  • Brushless Exciter, Frame BE-13-3, Type FRBA, KW Output 25, DC Volts 180, DC Amps 139

  • Permanent Magnet Alternator, Frame PM-13-3, KVA 24, KW 22

  • Air To Water Heat Exchanger, Water Flow Rate Thru Cooler 300 GPM, Max. Water Temperature Into Cooler 86 F, Max. Water Pressure 100 PSI, Water Temperature Out Of Cooler 92 F, Pressure Drop Thru Cooler 8 PSI

  • Graham 10" x 8' Inter / After Condenser, MAWP FV & 20 PSIG Shell / 75 PSIG Tubes, Test Pressure 26 PSIG Shell / 113 PSIG Tubes, Design Temp. 350 F Shell / 150 F Tubes

  • Graham Surface Condenser, 7322 Square Feet Surface Area, MAWP Shell - FV & 15 PSIG @ 250 F, MAWP Tubes - 75 PSIG @ 150 F, Test Pressure Shell 20 PSIG, Test Pressure Tubes 113 PSIG

  • Main Condensate Pumps, TECO-Westinghouse 20-HP, Goulds Model 3196 2x3-13, 12.375" Impellor Diameter, 300 GPM @ 140 TDH, 316SS Construction, #'s CP-8A & CP-8B

  • Lube-Power Inc. Lube Oil Skid

  • Turbine / Generator Instrument & Relay Cubicle Control Panel

  • Breaker Cubicle

  • Shippensburg Condensate Receiver Skid

  • Water Cooling Tower, With (4) Goulds Model VIT-FFFM Vertical Shaft Pumps, Size 24EHC, 1-Stage, Full Impellor, 5625-GPM @ 85' TDH, CCW Rotation, 150-HP, (2) 2-Speed Fan Motors, 200-HP 1785 RPM / 50-HP 895 RPM

• .
